Bicycle Hooks for Wall: The Smartest Indoor Bike Storage

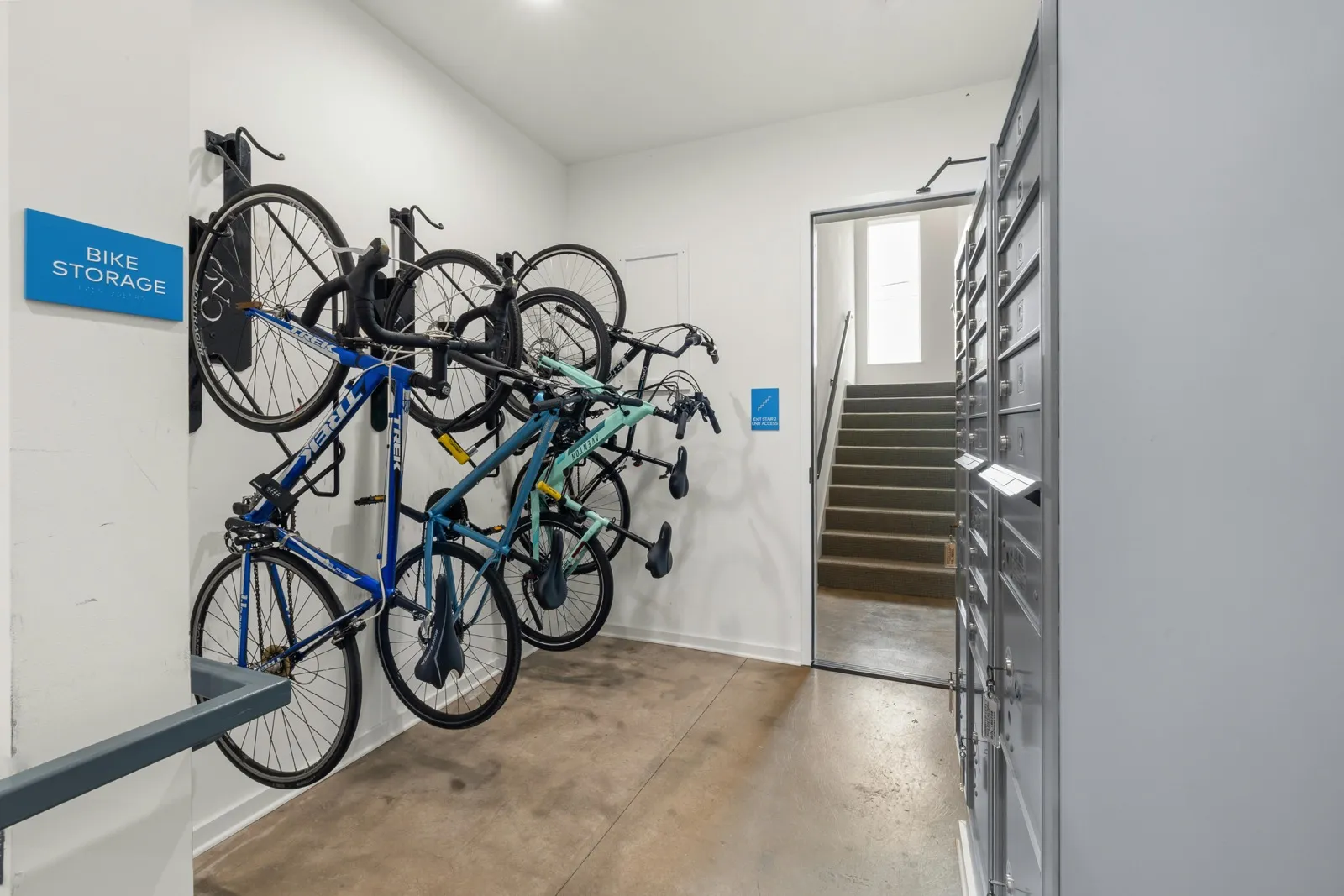

Bicycle hooks for wall mounting are the highest-density indoor bike storage solution available, holding bikes vertically by the front wheel with each hook occupying just 150 mm of wall width. A standard 3-metre wall can store 8-10 bikes when hooks are alternated high and low, compared to only 3 floor-standing positions in the same footprint. This makes wall hooks the dominant choice for condo bike rooms, garages, apartment storage closets, and commercial bike room installations governed by Toronto bylaw 569-2013 or Vancouver's 1.25-spaces-per-unit Class A requirement.
Hook Designs and Capacity
The rubber-coated steel J-hook is the industry standard — a heavy-gauge steel arm bent into a J-shape with a thick rubber sleeve that protects the bike's front rim from scratching. Capacity per hook ranges from 20 kg (basic residential) to 40 kg (commercial heavy-duty rated for e-bikes and cargo bikes). For high-capacity multi-bike walls, rail-mounted sliding hook systems allow the hook positions to adjust along a horizontal track, accommodating bikes of different wheel sizes (700c, 27.5", 29") without re-drilling.
Wall Anchoring Standards
Bicycle hooks for wall installation must transfer the bike's full weight plus dynamic loading (when bikes are lifted on and off) into structural elements:
- •Wood stud walls: #10 wood screws minimum 75 mm into the centre of a stud, never into drywall alone
- •Concrete or masonry walls: M8 or M10 expansion anchors with minimum 50 kg pullout rating, embedded 50 mm
- •Steel-stud walls: toggle bolts rated for 30+ kg through the stud face
- •Mounting height: 1.6-1.8 m for adult bikes; 1.3-1.5 m for children's bikes
- •Spacing: 350-400 mm centre-to-centre, alternating high and low
When Wall Hooks Are the Right Choice
Wall hooks excel in dry indoor environments with adequate ceiling height (minimum 2.4 m). They're not suitable for outdoor use without weather protection, and not ideal for users who cannot lift a 12-15 kg bike to shoulder height. For accessible installations, pair wall hooks with floor-standing racks at lower heights.
BikeRacks.ca supplies bicycle hooks for wall installations starting at $25 per hook with rubber sleeves that fit 700c through 29" wheels.
## Bicycle Hook Mechanical Designs
Bicycle hooks for wall storage come in five mechanical designs, each suited to different use cases:
Static rubber-coated hook — simplest design. Stamped or formed steel hook with rubber coating on the wheel-contact surface. Cost: $15-$40. Best for: light-use residential storage, single bike.
Spring-loaded hook — torsion spring inside the hook collar provides a small assist when lifting and rotating. Reduces lift effort by 20-30%. Cost: $40-$100. Best for: regular use, larger bike fleet.
Gas-strut assisted hook — a small gas cylinder provides up to 50% lift assist. Designed for heavy e-bikes (up to 30 kg). Cost: $100-$200. Best for: e-bike storage in multi-residential or commercial bike rooms.
Sliding-track hook — hook slides along a horizontal rail, allowing user-adjusted spacing. Cost: $50-$150 per hook + $50-$100 per linear metre of rail. Best for: condo bike rooms where bike sizes vary.
Two-bike vertical hook — single mount holds two bikes stacked vertically. Cost: $80-$200. Best for: maximum-density storage in premium condo bike rooms with 3.0 m+ ceilings.
Hook Material and Coating Specifications
Bicycle hooks for wall mounting interact with two materials: the wall structure and the bike wheel rim. Specifications:
Hook body material — steel (mild or stainless), thickness 5-8 mm typical for residential, 8-12 mm for commercial heavy-use applications.
Wheel-contact coating — must prevent rim scratching and bike rotation. Options: - Vinyl-dipped ($15-$30 hooks) — basic, cracks over 3-5 years - Silicone-overmolded ($30-$80 hooks) — softer, no cracking, 10-year life - Rubber-coated ($50-$150 hooks) — softest, lowest rim damage risk
Mounting backing — flange or wallplate with 2-4 anchor holes. Flange thickness 4-6 mm minimum for adequate pull-out resistance.
Lift mechanism (spring or gas-strut hooks) — rated for 50,000+ cycles (~10-15 years of daily use). Field-replaceable on commercial-grade products.
Load Ratings and Safety Margins
Bicycle hook load rating considerations:
Standard adult bike: 9-12 kg Loaded touring bike (with panniers): 18-25 kg E-bike (no battery): 18-25 kg E-bike (with battery): 22-30 kg Heavy cargo or longtail e-bike: 30-45 kg
Specify hooks rated for 2× the maximum static load to provide safety margin against dynamic loading (the lift motion during placement). For e-bike compatibility, minimum hook rating: 30 kg static / 60 kg dynamic.
Anchor Selection for Each Wall Type
Bicycle hook anchor selection depends on the wall substrate:
Concrete wall — sleeve anchor (Hilti HSA, Simpson Strong-Tie) M8 or M10 diameter, 60-80 mm embedment. Pull-out resistance: 4.5 kN+.
Concrete masonry unit (hollow CMU) — concrete-screw anchor with grout-filled cell. Pull-out: 3-5 kN.
Brick (solid) — sleeve anchor M8-M10. Pull-out: 4-7 kN.
Wood stud (16" / 400 mm spacing typical) — 3/8" lag bolt, 75 mm minimum embedment into the stud. Pull-out: 6-9 kN per bolt.
Steel stud + drywall — heavy-duty toggle bolt with metal anchor (Toggler, EZ Anchor). Pull-out: 2-4 kN (lower than other methods).
Drywall alone, no backing — NOT RECOMMENDED for bike hook installation. Use only with timber blocking added behind the drywall.
Hook Installation Spacing
For multi-bike hook installations on a single wall, follow these spacing rules:
- •Single-height layout (all hooks at 1.8 m): 700 mm centre-to-centre (handlebars clear)
- •Alternating-height layout (1.2 m and 1.8 m): 350 mm centre-to-centre — highest density
- •Mixed bike types: 500 mm centre-to-centre to accommodate wide handlebars
A 3 m wall section with alternating-height hooks holds 8 bikes. The same wall with single-height hooks holds 4 bikes.
Hook Selection by Use Case Matrix
| Use case | Recommended hook |
|---|---|
| Garage, single bike | Static rubber-coated, $15-$40 |
| Garage, 2-4 bikes | Static or spring-loaded, $30-$80 each |
| Condo bike room, mixed bikes | Sliding-track on wall rail, $50-$150 |
| E-bike storage | Gas-strut assist, $100-$200 |
| Commercial Class A | Heavy-duty rail + integrated lock bar, $100-$200 |
| Bike shop / display | Horizontal cradle, $100-$200 |
For projects requiring more than 10 hooks, BikeRacks.ca provides bulk pricing, wall-rail systems, and free layout consultation including anchor specification by wall type.
Maintenance and Replacement Lifecycle
Quality bicycle hooks last 10-25 years depending on use intensity:
- •Static hooks: 10-15 years; rubber coating degrades first
- •Spring-loaded hooks: 8-12 years; spring fatigue under daily use
- •Gas-strut hooks: 10-15 years; gas spring rated 50,000+ cycles
- •Wall rails: 25+ years; slider components wear faster than the rail itself
For commercial Class A bike room installations, BikeRacks.ca maintains replacement-part inventory across all current and recent product lines, with same-week shipping to Canadian addresses.
